Advanced multimedia filtration systems designed to remove suspended solids and turbidity, ensuring high-quality water for industries in Dubai, Abu Dhabi, and the UAE.

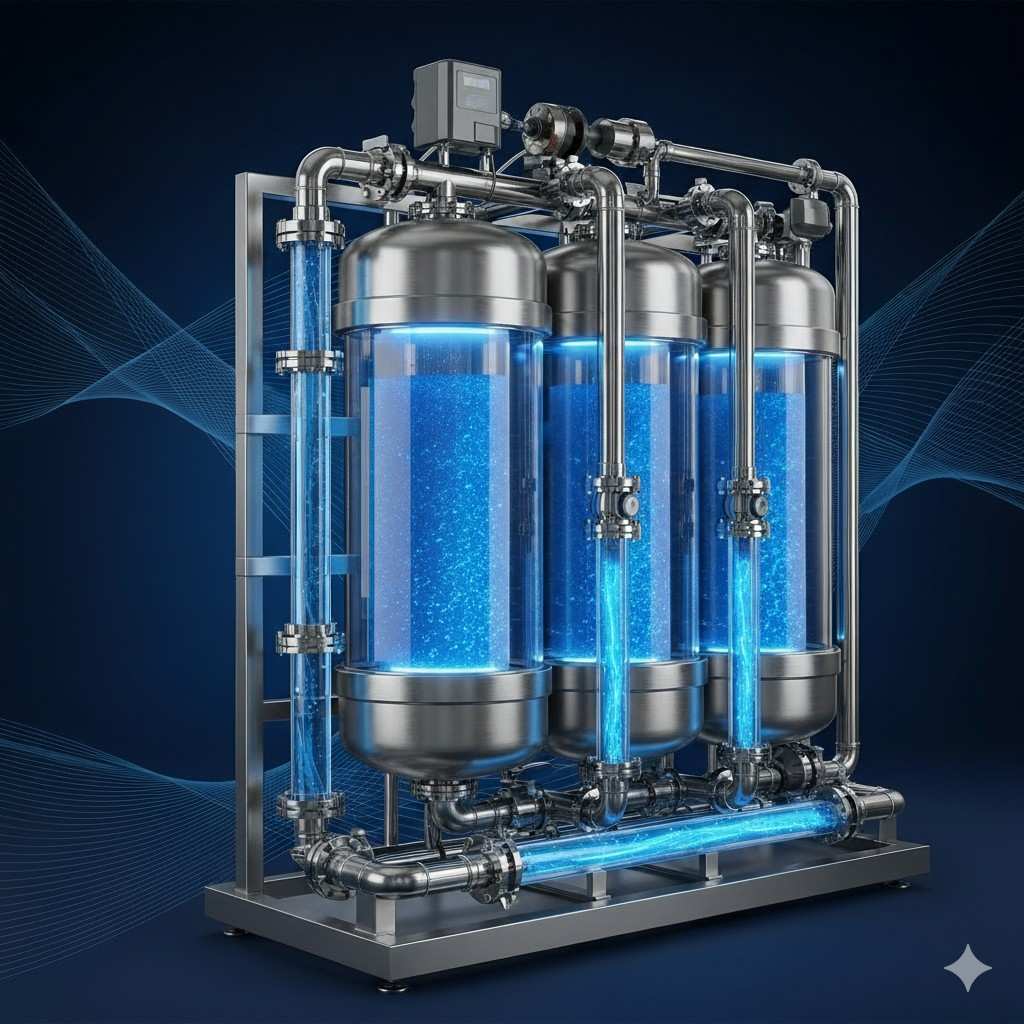

Fully automated multimedia filtration systems cleanse coarse residue, particles, suspended solid matter and materials that cause blurriness in industrial and commercial applications to make your water useable. Multimedia filters are drained during service periods and are cleaned extensively during the backwash period.

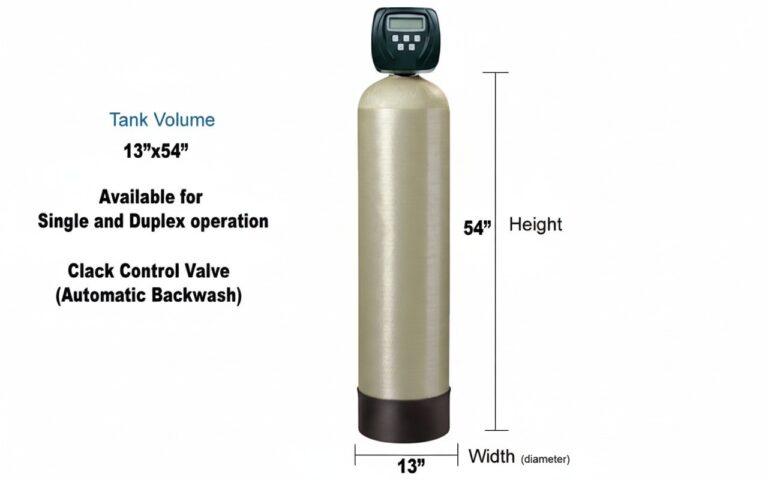

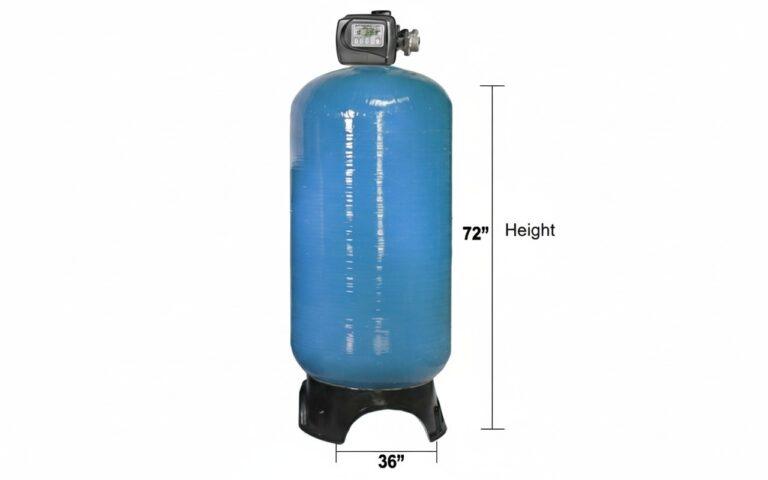

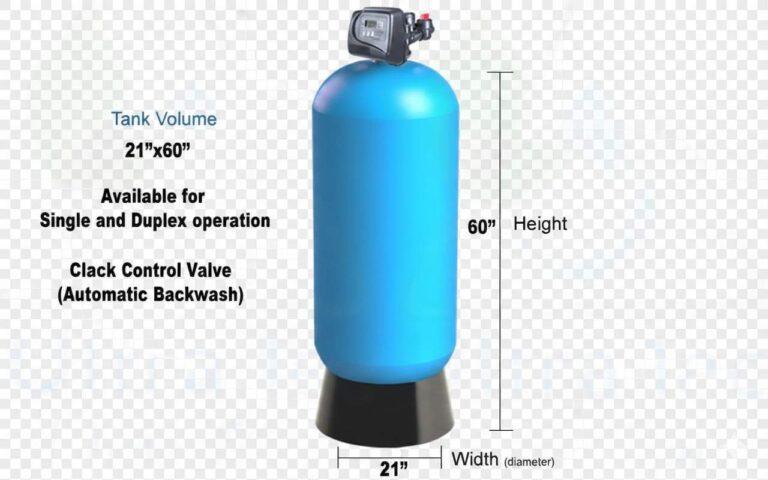

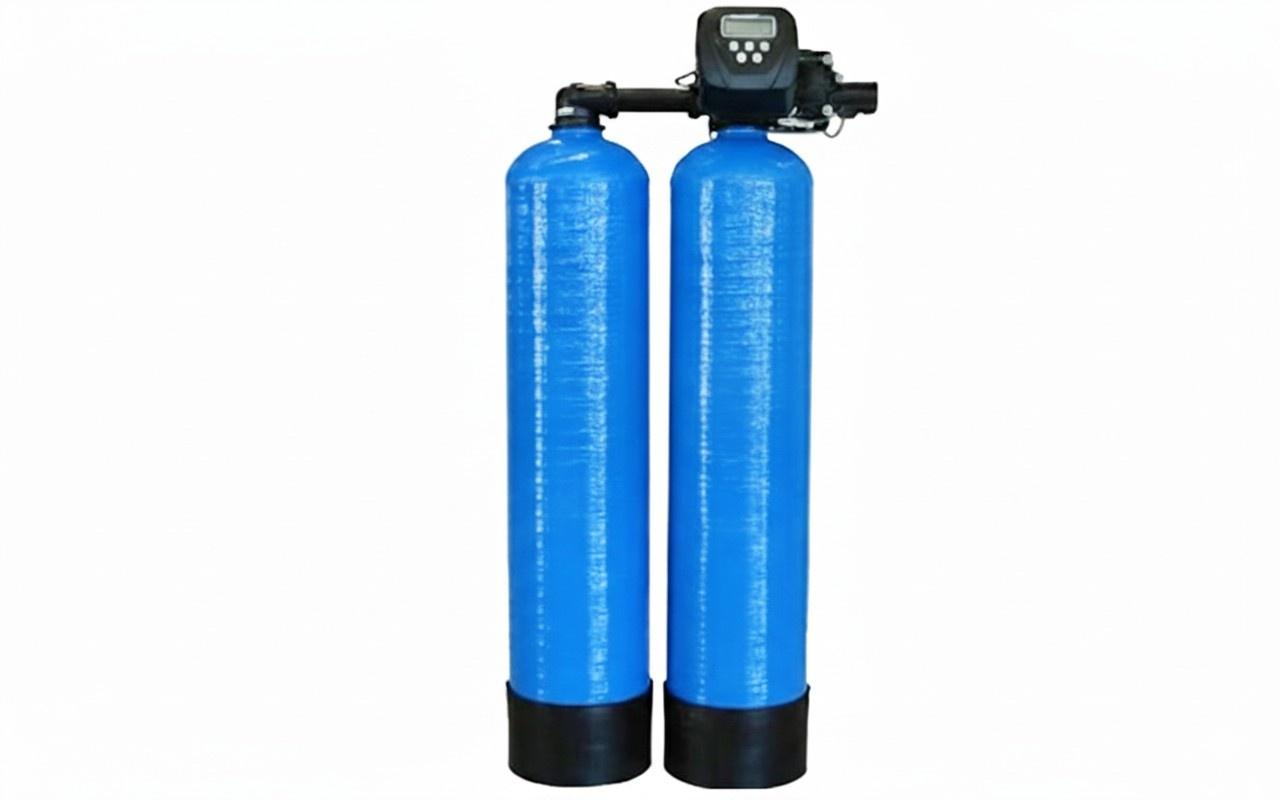

Ensure your water treatment system performs flawlessly and maximizes its operational lifespan with our high-efficiency Multimedia Filtration Systems. Designed to meet precise flow rates, these units feature an automatic backwash timer and programmable valve for simplified, high-rate efficiency.
The corrosion-resistant FRP housing guarantees durability, even under high pressure (operating 3–6 bar, test max 10 bar). With four different sizes of filtration media and a standard 220 V/50 Hz supply, this is the reliable solution for optimal particle removal up to 40 ∘ C.

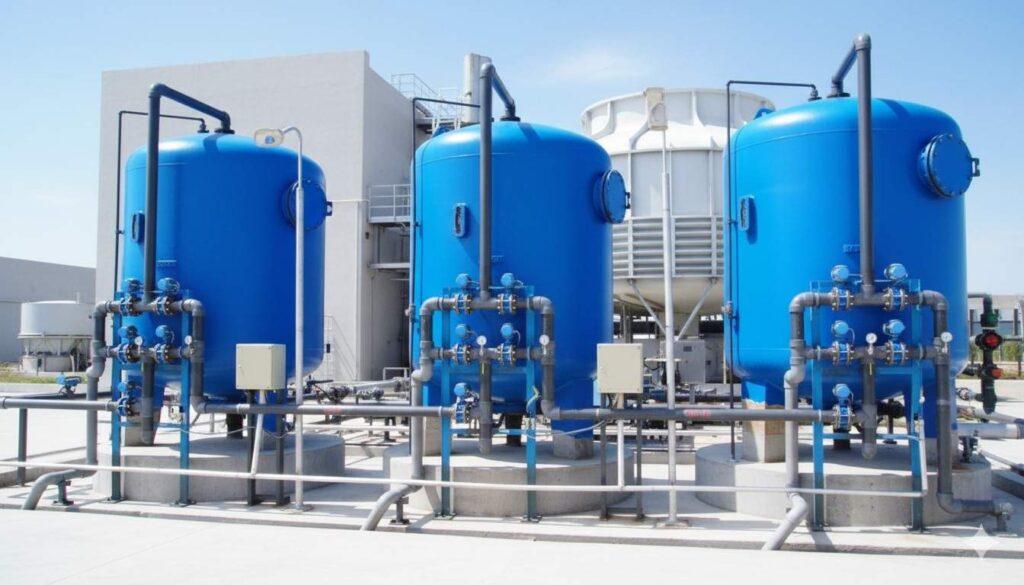

In UAE’s industrial sectors, water sources often contain high levels of suspended solids and turbidity, which can damage equipment and reduce efficiency. Multimedia filters provide a robust solution by effectively removing these impurities before water enters sensitive purification systems such as RO and UF.
Industries in Dubai, Abu Dhabi, and Sharjah rely on multimedia filters to:
Ensure compliance with water quality standards

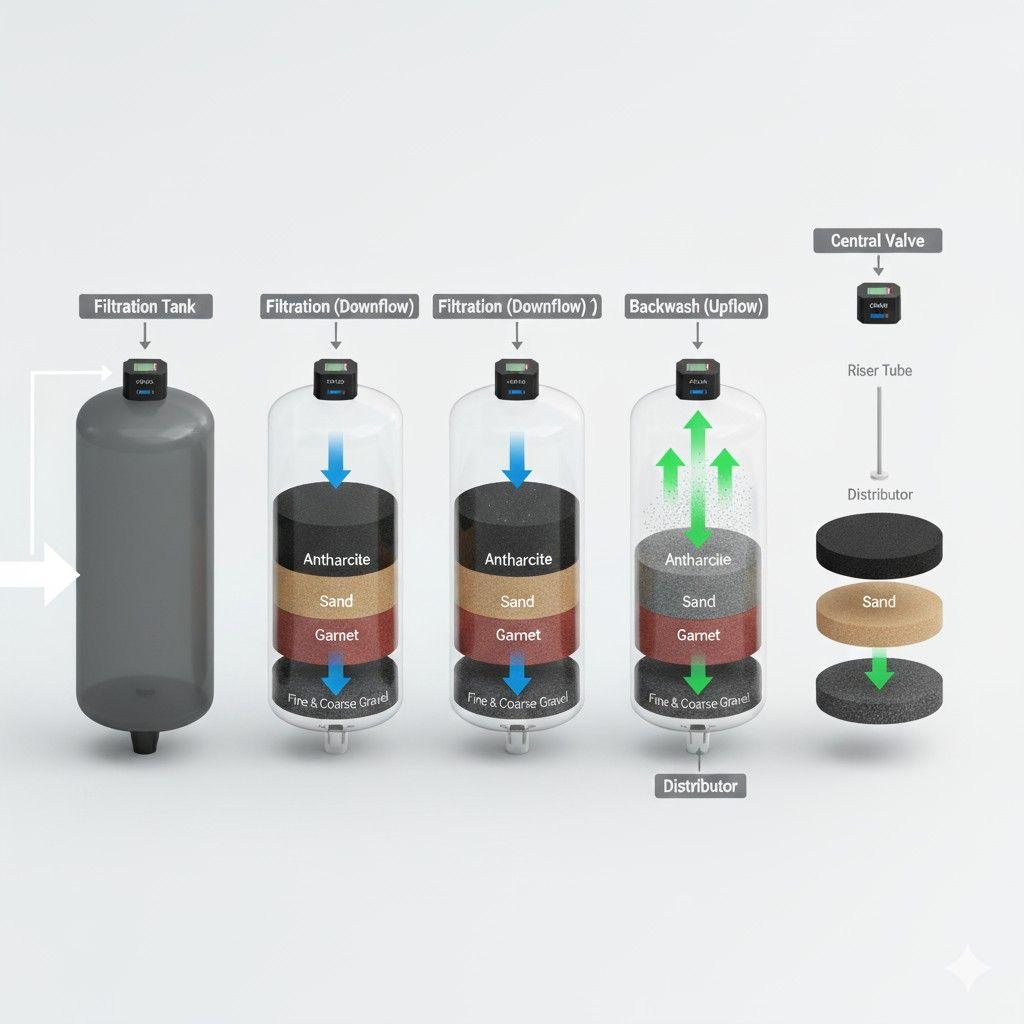

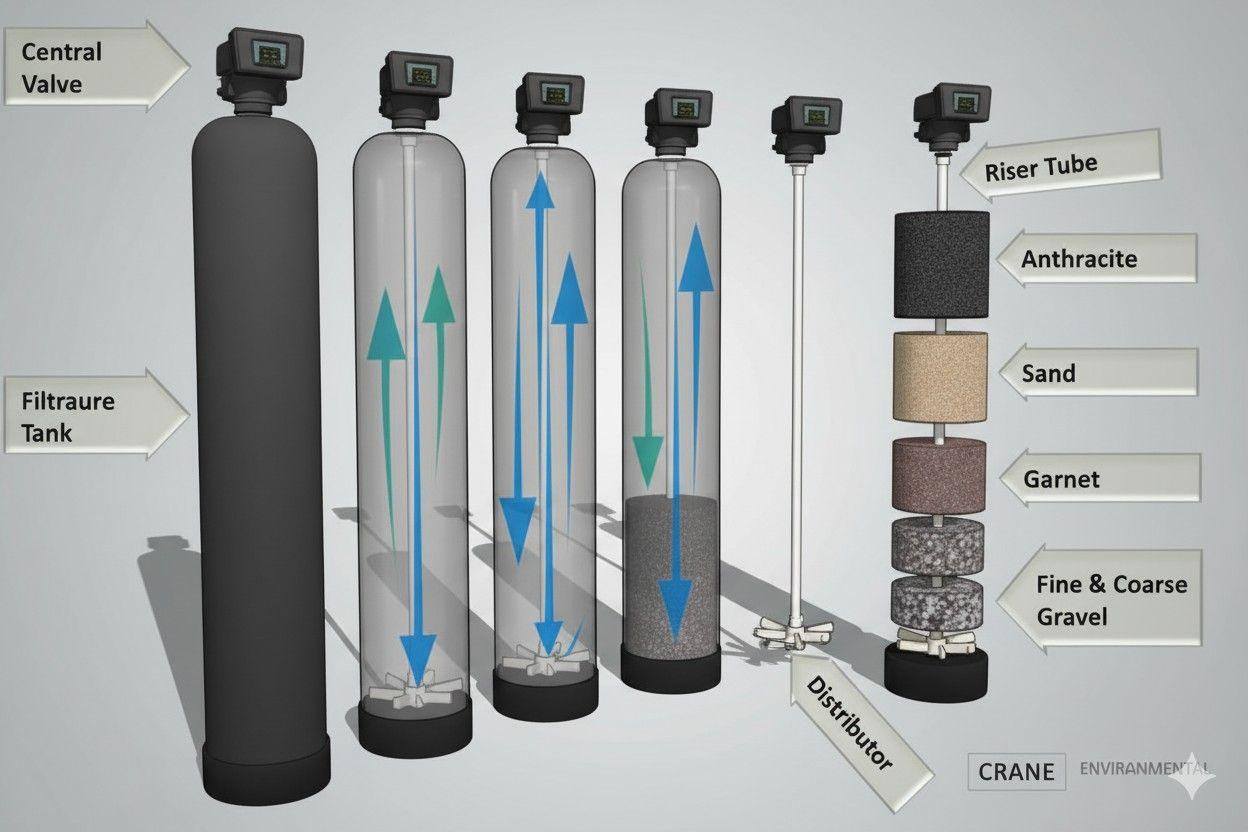

A multimedia filter uses multiple layers of filtration media such as gravel, sand, and anthracite coal to remove suspended solids from water. Each layer targets particles of different sizes, providing efficient and thorough filtration.
Key Components:
Working Principle:
Water passes through the filter media layers, trapping particles as it flows from the top to bottom. The system periodically backwashes to flush out trapped solids and maintain performance.
Surface straining is the initial and most direct retention mechanism in granular filters, primarily capturing particles too large to pass through the pores in the media. However, as solids accumulate and the filter surface becomes saturated, this layer effectively blocks even smaller particles from entering the filter bed. This accumulation eventually leads to filter clogging, which is indicated by a sharply increased differential pressure across the system, signaling the need for backwashing or cleaning.
Particle attachment (or adsorption) is a core principle of high-rate filtration, enabling the capture of smaller suspended solids as they adhere to the surface of the granular media grains. The effectiveness of the overall filtration process is directly measured by the strength of this adhesive bond, specifically its resistance to the shear forces generated by the water flow.
The selection of granular filter media—fine vs. coarse—is critical to particle removal. Fine media (effective size 0.3 mm, uniformity coefficient ≤1.4) offers superior filtration, typically removing 95% of particles down to 6 microns. Coarse media (effective size 0.45 mm with similar uniformity) generally filters down to 15 microns. Both utilize a support sand layer (effective size 1.2 mm, uniformity coefficient ≤1.6). While these metrics define expected performance, actual site conditions significantly influence final efficiency.
As a manufacturer of high-end appliances, Innovators-dubai is dedicated to maximizing user convenience and comfort, which requires us to fully support and guarantee the impeccable performance of our products. Our promise is to ensure customer satisfaction throughout the entire service life of every product we sell. We achieve this by offering a comprehensive range of services, including expert sizing, professional commissioning, and reliable service and maintenance programs.
Testing to determine the appropriate media layers and system size.
Tailored multimedia filters to meet specific industry needs.
Quality checks before shipment to UAE site.
Expert setup in Dubai, Abu Dhabi, or Sharjah with minimal disruption.
Pricing varies based on:
Typical Price Range:
Flexible financing and service packages available to support UAE industries.
Don’t let water scarcity hold back your industrial growth. Invest in a reliable RO Plant designed to meet UAE’s unique coastal challenges.
Contact us today for a free consultation and tailored quote!
Typically, every 6-12 hours depending on water quality and usage.
Commonly gravel, sand, and anthracite coal layers.
Yes, designed to efficiently reduce turbidity and suspended solids.
Yes, automated backwash systems are standard for industrial use.
Yes, full maintenance and media replacement services are offered.
